OSG

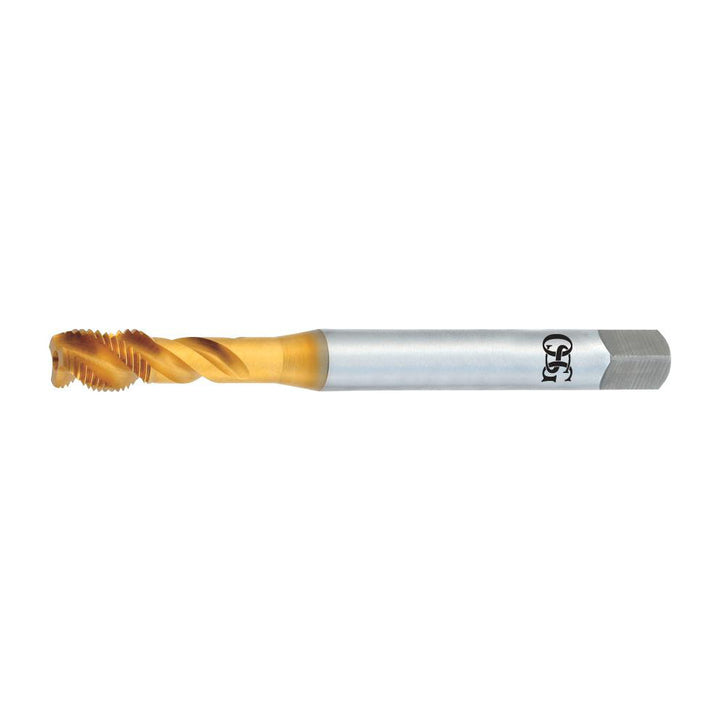

M14x1.5 MF Vanadium High-Speed Steel Tap, TiN - OSG 2392505
MFR# 2392505Series 239
$139.11List $178.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiN
Description
The OSG 2392505 is a MF Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length (mm)51
Number of flutes3
Overall length (mm)1
OversizeNo
Shank diameter0.4290
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)16
Thread size (mm)M14x1.5
Thread standardMF
