OSG

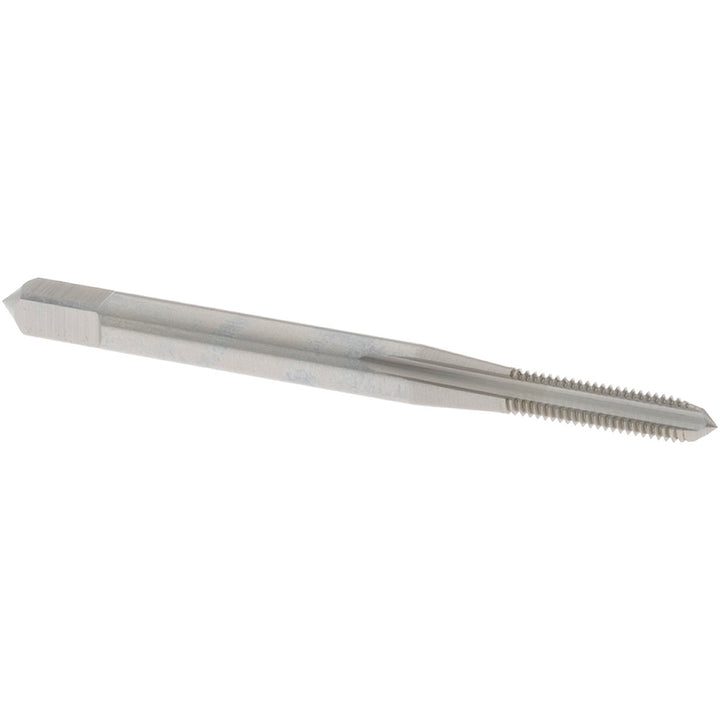

M3x0.5 Metric Coarse Solid Carbide Machine Tap - OSG 24010
MFR# 24010Series 349
$106.41List $136.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The OSG 24010 is a Metric Coarse Solid Carbide Machine tap. 3 flutes.
Specifications
ChamferModified Bottoming
Coolant throughNo
MaterialSolid Carbide
Material applicationAluminum; Cast Aluminum; Cast Iron
Neck length13.00
Number of flutes3
Overall length (mm)46.00
OversizeNo
Shank diameter (mm)4
Square length (mm)6
Square size (mm)3.2
Tap typeMachine
Thread directionRight Hand
Thread length (mm)11
Thread limitH3
Thread size (mm)M3x0.5
Thread standardMetric Coarse
