OSG

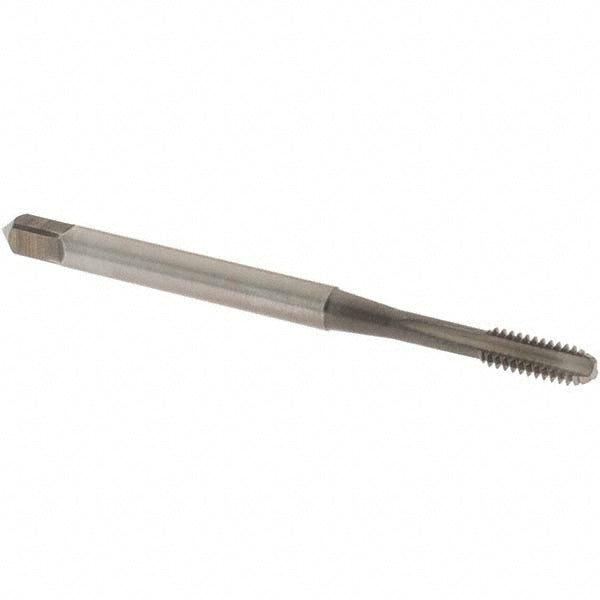

#5-40 UNC Vanadium High-Speed Steel Machine Tap, Nitride - OSG 2401203
MFR# 2401203Series 240
$14.12List $18.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-40
CoatingNitride
Description
The OSG 2401203 is a #5-40 UNC Vanadium High-Speed Steel Machine tap with a Nitride finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B; 3B
Coating finishNitride
Coolant throughNo
MaterialVanadium High-Speed Steel
Material applicationAluminum; Cast Iron
Neck length0.6260
Number of flutes3
Overall length in1-15/16
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeMachine
Threads per inch40
Thread directionRight Hand
Thread length in5/8
Thread limitH2
Thread size in#5-40
Thread standardUNC
