OSG

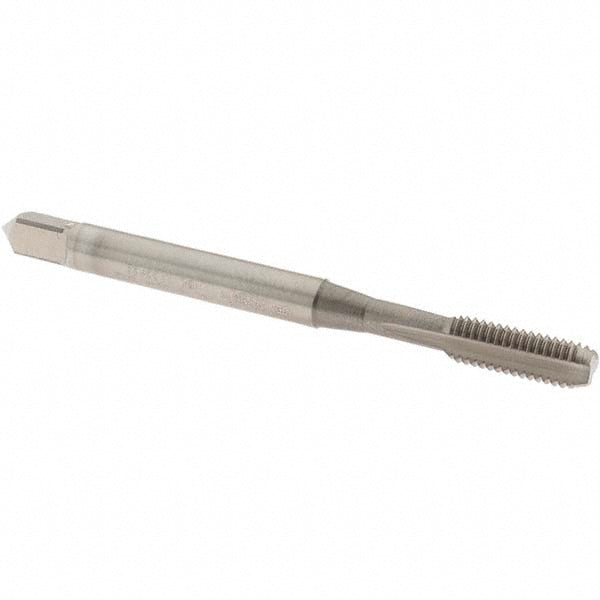

#10-32 UNF Vanadium High-Speed Steel Machine Tap, Nitride - OSG 2402803
MFR# 2402803Series 240
$11.62List $14.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingNitride
Description
The OSG 2402803 is a #10-32 UNF Vanadium High-Speed Steel Machine tap with a Nitride finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishNitride
Coolant throughNo
MaterialVanadium High-Speed Steel
Material applicationAluminum; Cast Iron
Neck length0.8660
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.194
Square length0.25
Square size0.152
Tap typeMachine
Threads per inch32
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread size in#10-32
Thread standardUNF
