OSG

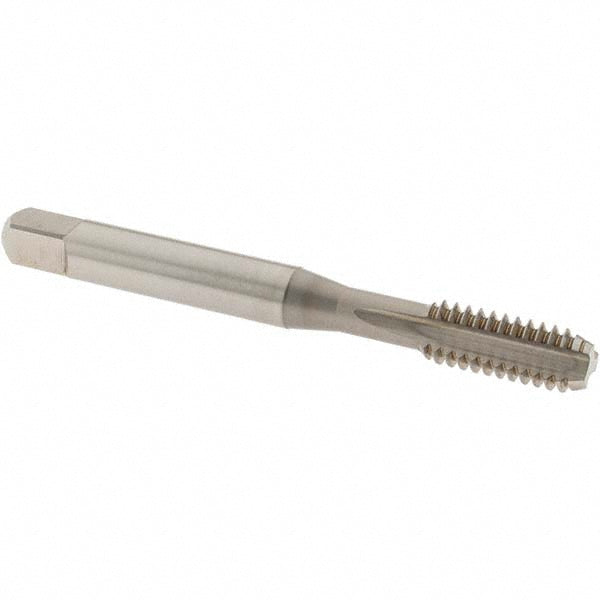

1/4-20 UNC Vanadium High-Speed Steel Machine Tap, Nitride - OSG 2403603
MFR# 2403603Series 240
$12.99List $16.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingNitride
Description
The OSG 2403603 is a 1/4-20 UNC Vanadium High-Speed Steel Machine tap with a Nitride finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishNitride
Coolant throughNo
MaterialVanadium High-Speed Steel
Material applicationAluminum; Cast Iron
Neck length0.9960
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Tap typeMachine
Threads per inch20
Thread directionRight Hand
Thread length in1
Thread limitH5
Thread size in1/4-20
Thread standardUNC
