OSG

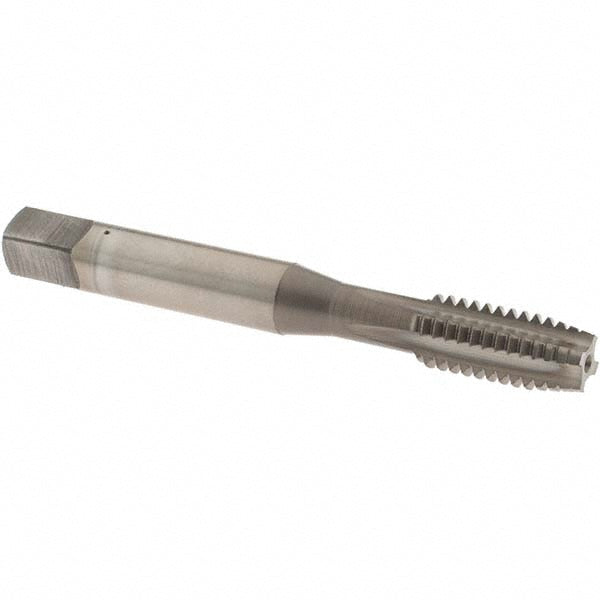

5/16-18 UNC Vanadium High-Speed Steel Machine Tap, Nitride - OSG 2404303
MFR# 2404303Series 240
$14.58List $18.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-18
CoatingNitride
Description
The OSG 2404303 is a 5/16-18 UNC Vanadium High-Speed Steel Machine tap with a Nitride finish. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishNitride
Coolant throughNo
MaterialVanadium High-Speed Steel
Material applicationAluminum; Cast Iron
Neck length1.1260
Number of flutes4
Overall length in2-23/32
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Tap typeMachine
Threads per inch18
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-18
Thread standardUNC
