OSG

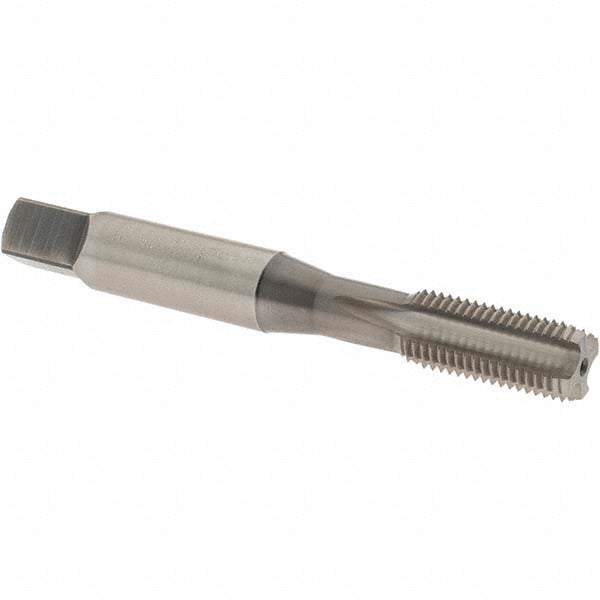

3/8-24 UNF Vanadium High-Speed Steel Machine Tap, Nitride - OSG 2406403
MFR# 2406403Series 240
$16.43List $21.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/8-24
CoatingNitride
Description
The OSG 2406403 is a 3/8-24 UNF Vanadium High-Speed Steel Machine tap with a Nitride finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishNitride
Coolant throughNo
MaterialVanadium High-Speed Steel
Material applicationAluminum; Cast Iron
Neck length1.2520
Number of flutes4
Overall length in2-15/16
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Tap typeMachine
Threads per inch24
Thread directionRight Hand
Thread length in1-1/4
Thread limitH3
Thread size in3/8-24
Thread standardUNF
