OSG
#8-32 UNC Vanadium High-Speed Steel Machine Tap, Nitride - OSG 2493203
MFR# 2493203Series 240
$11.62List $14.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingNitride
Description

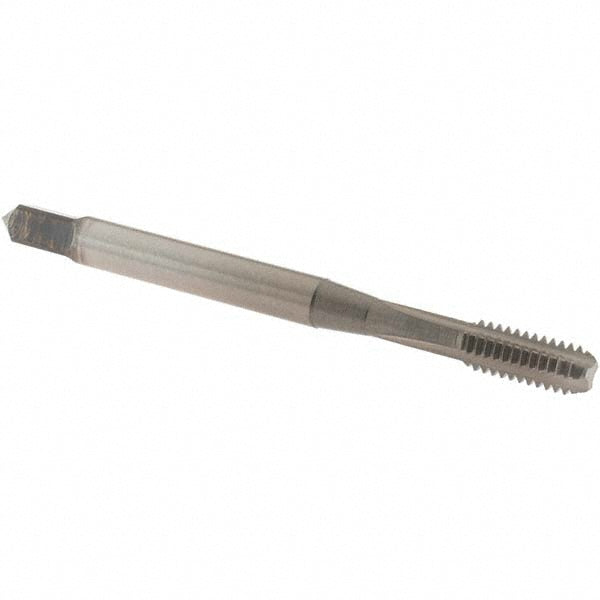

The OSG 2493203 is a #8-32 UNC Vanadium High-Speed Steel Machine tap with a Nitride finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishNitride
Coolant throughNo
MaterialVanadium High-Speed Steel
Material applicationAluminum; Cast Iron
Neck length0.7520
Number of flutes3
Overall length in2-1/8
OversizeNo
Shank diameter0.168
Square length0.25
Square size0.131
Tap typeMachine
Threads per inch32
Thread directionRight Hand
Thread length in3/4
Thread limitH3
Thread size in#8-32
Thread standardUNC
