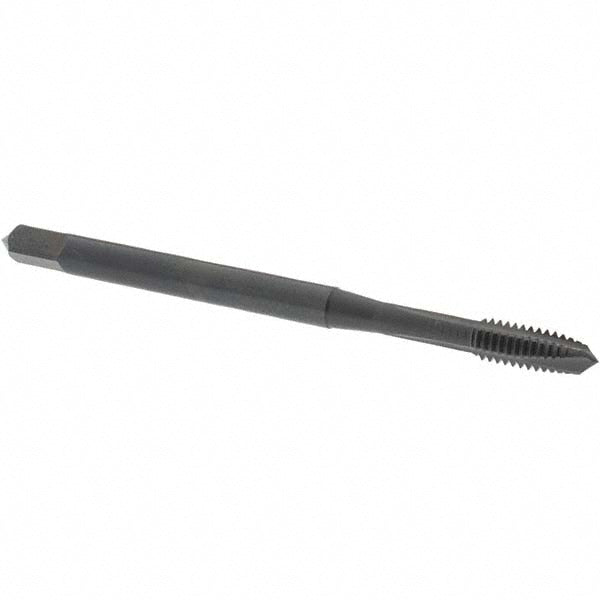

#8-32 UNC High-Speed Steel-E Tap, Steam Oxide - OSG 2517801
MFR# 2517801Series 250
$16.14List $20.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingSteam Oxide
Description
The OSG 2517801 is a #8-32 UNC High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes3
Overall length in2-31/64
OversizeNo
Shank diameter0.168
Thread directionRight Hand
Thread length in3/4
Thread limitH2
Thread size in#8-32
Thread standardUNC
