OSG

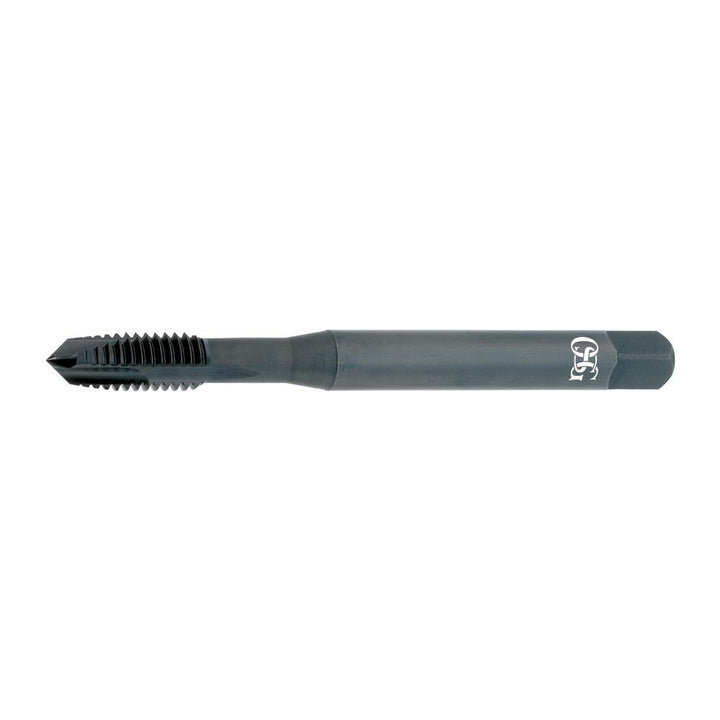

3/4-16 UNF High-Speed Steel-E Tap, Steam Oxide - OSG 2533801
MFR# 2533801Series 250
$96.52List $123.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-16
CoatingSteam Oxide
Description
The OSG 2533801 is a 3/4-16 UNF High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes3
Overall length4.3310
OversizeNo
Shank diameter0.5900
Thread directionRight Hand
Thread length in2
Thread limitH2
Thread size in3/4-16
Thread standardUNF
