OSG

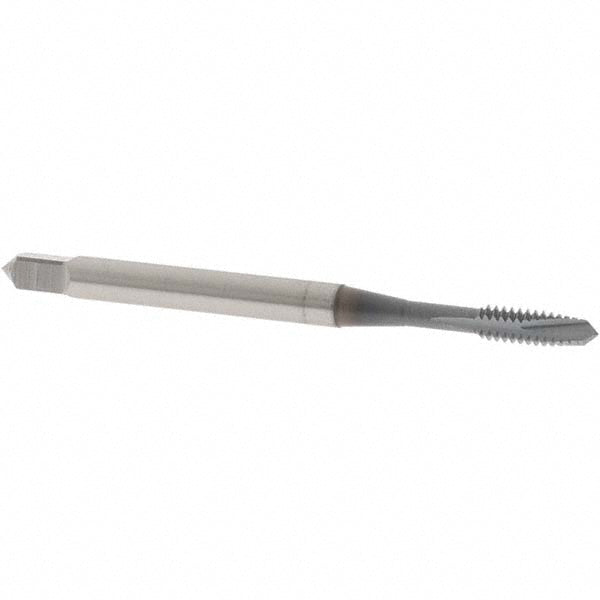

#4-40 UNC High-Speed Steel-E Tap, TiCN - OSG 2806408
MFR# 2806408Series 280
$21.33List $27.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingTiCN
Description
The OSG 2806408 is a #4-40 UNC High-Speed Steel-E tap with a TiCN finish. 2 flutes.
Specifications
ChamferPlug
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes2
Overall length1.874
OversizeNo
Shank diameter0.141
Thread directionRight Hand
Thread length in9/16
Thread limitH2
Thread size in#4-40
Thread standardUNC
