OSG

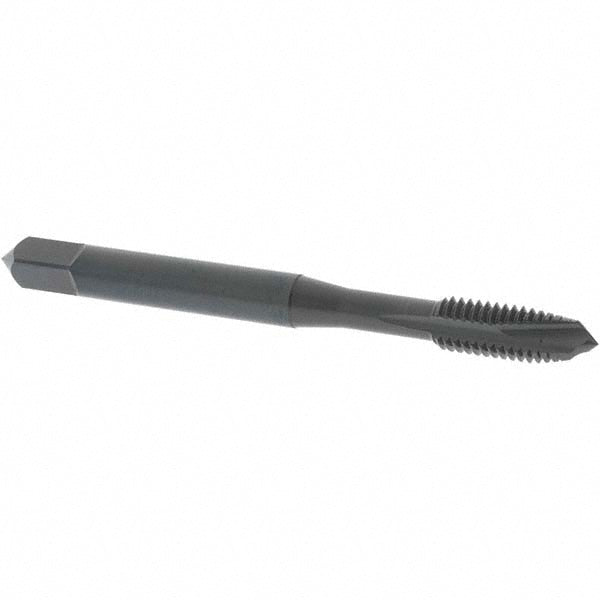

#12-28 UNF High-Speed Steel-E Tap, Steam Oxide - OSG 2809201
MFR# 2809201Series 280
$15.50List $19.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#12-28
CoatingSteam Oxide
Description
The OSG 2809201 is a #12-28 UNF High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B; 3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Material grade3% Vanadium
Number of flutes3
Overall length2.374
OversizeNo
Shank diameter0.22
Thread directionRight Hand
Thread length in15/16
Thread limitH3
Thread size in#12-28
Thread standardUNF
