OSG
#10-24 UNC High-Speed Steel-E Tap, Steam Oxide - OSG 2813401
MFR# 2813401Series 280
$15.50List $19.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingSteam Oxide
Description

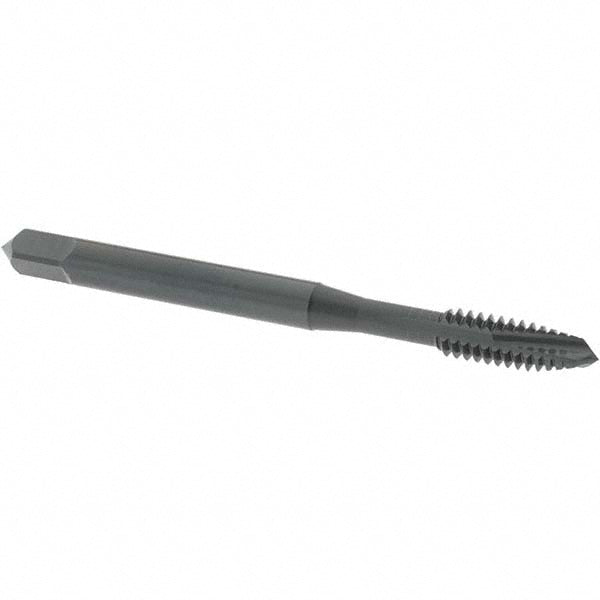

The OSG 2813401 is a #10-24 UNC High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes3
Overall length2.3740
OversizeNo
Shank diameter0.1940
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread size in#10-24
Thread standardUNC
