OSG

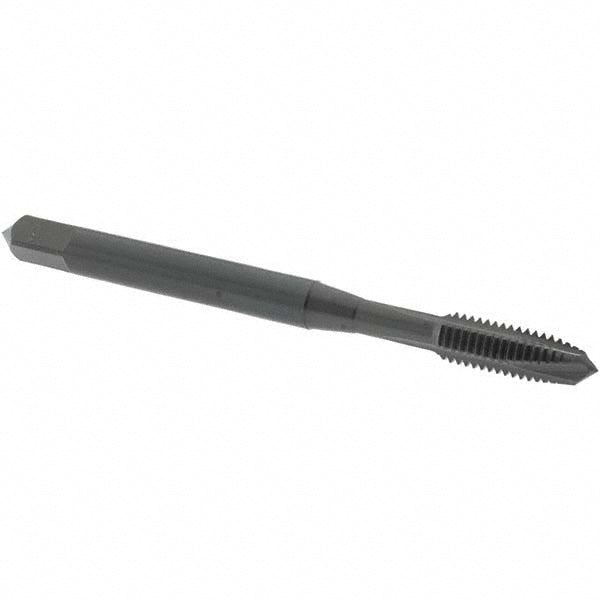

#10-32 UNF High-Speed Steel-E Tap, Steam Oxide - OSG 2813901
MFR# 2813901Series 280
$15.50List $19.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingSteam Oxide
Description
The OSG 2813901 is a #10-32 UNF High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes3
Overall length2.374
OversizeNo
Shank diameter0.194
Thread directionRight Hand
Thread length in7/8
Thread limitH4
Thread size in#10-32
Thread standardUNF
