OSG
#4-48 UNF High-Speed Steel-E Tap, Steam Oxide - OSG 2816501
MFR# 2816501Series 280
$18.64List $23.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-48
CoatingSteam Oxide
Description

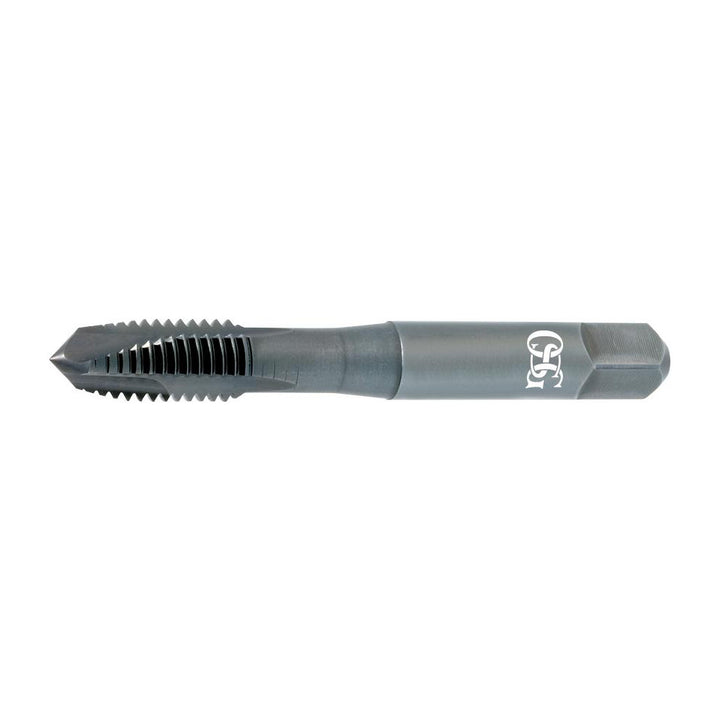

The OSG 2816501 is a #4-48 UNF High-Speed Steel-E tap with a Steam Oxide finish. 2 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Material grade3% Vanadium
Number of flutes2
Overall length1.874
OversizeNo
Shank diameter0.141
Thread directionRight Hand
Thread length in9/16
Thread limitH2
Thread size in#4-48
Thread standardUNF
