OSG

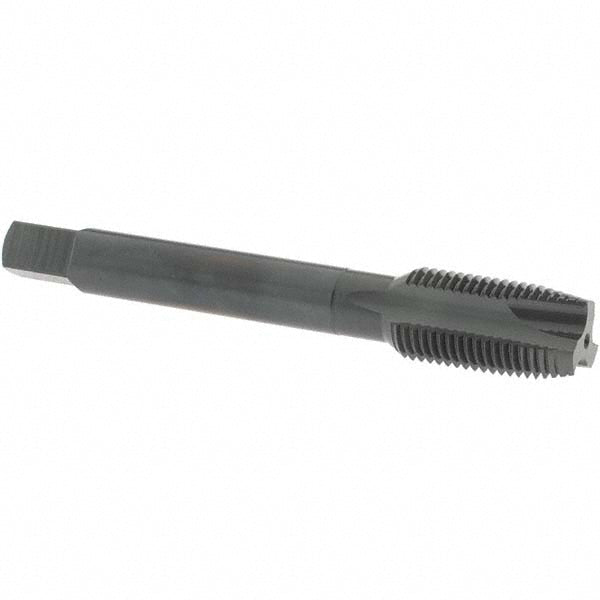

1/2-20 UNF High-Speed Steel-E Tap, Steam Oxide - OSG 2832601
MFR# 2832601Series 280
$32.69List $41.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingSteam Oxide
Description
The OSG 2832601 is a 1/2-20 UNF High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes3
Overall length3.3740
OversizeNo
Shank diameter0.3670
Thread directionRight Hand
Thread length in1-21/32
Thread limitH3
Thread size in1/2-20
Thread standardUNF
