OSG

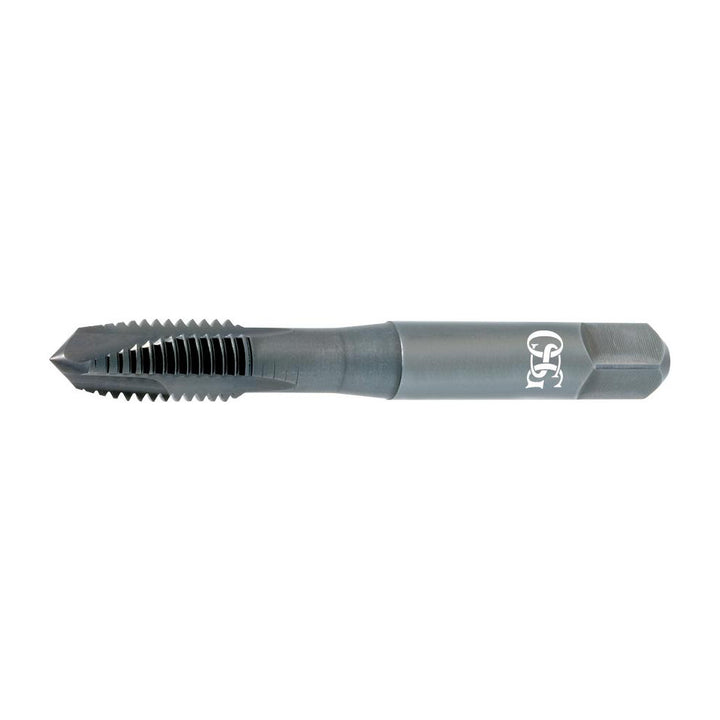

3/4-10 UNC High-Speed Steel-E Tap, Steam Oxide - OSG 2843601
MFR# 2843601Series 280
$93.01List $119.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-10
CoatingSteam Oxide
Description
The OSG 2843601 is a 3/4-10 UNC High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B; 3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes3
Overall length4.252
OversizeNo
Shank diameter0.59
Thread directionRight Hand
Thread length in2
Thread limitH5
Thread size in3/4-10
Thread standardUNC
