OSG

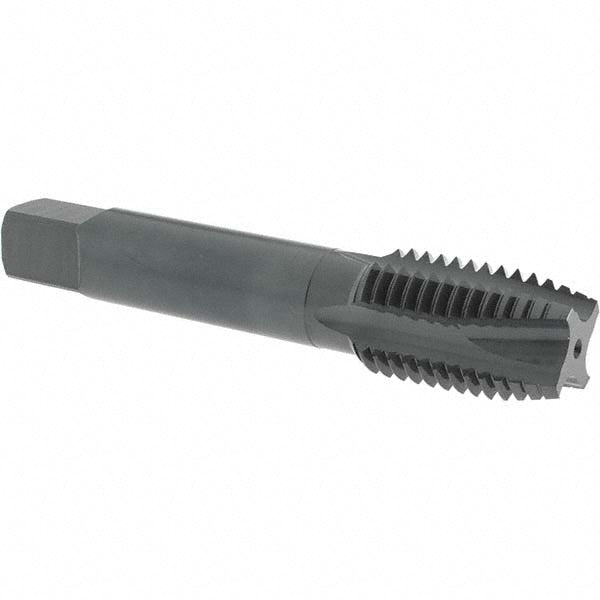

1-8 UNC High-Speed Steel-E Tap, Steam Oxide - OSG 2844401
MFR# 2844401Series 280
$184.00List $235.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-8
CoatingSteam Oxide
Description
The OSG 2844401 is a 1-8 UNC High-Speed Steel-E tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferPlug
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes4
Overall length5.126
OversizeNo
Shank diameter0.8
Thread directionRight Hand
Thread length in2-1/2
Thread limitH5
Thread size in1-8
Thread standardUNC
