OSG

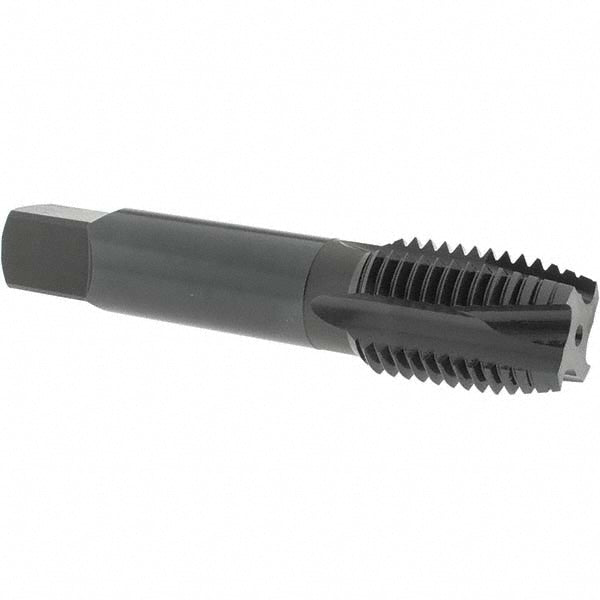

1-1/4-7 UNC High-Speed Steel-E Tap, Steam Oxide - OSG 2850401
MFR# 2850401Series 280
$390.77List $501.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/4-7
CoatingSteam Oxide
Description
The OSG 2850401 is a 1-1/4-7 UNC High-Speed Steel-E tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferPlug
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Number of flutes4
Overall length5.752
OversizeNo
Shank diameter1.21
Thread directionRight Hand
Thread length in2-9/16
Thread limitH6
Thread size in1-1/4-7
Thread standardUNC
