OSG

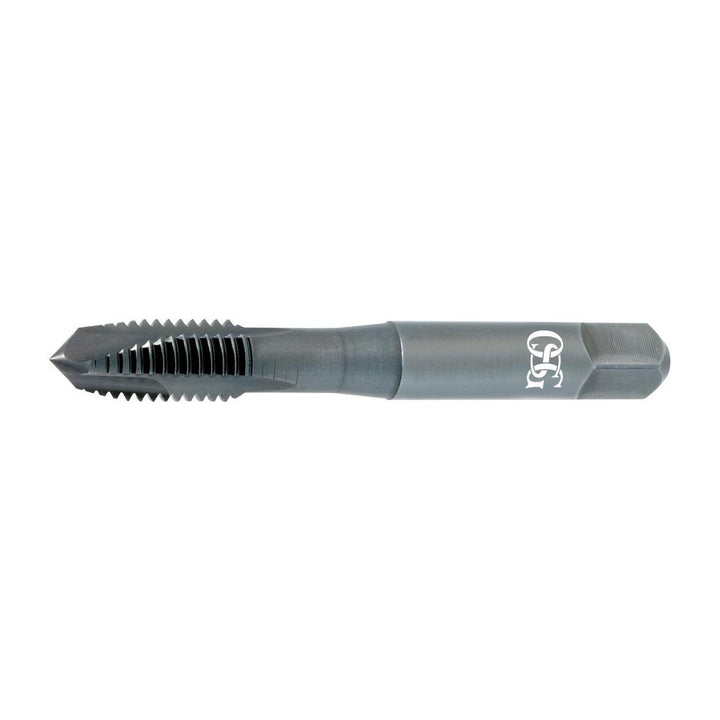

5/16-18 UNC HSS-E Vanadium Spiral Point Tap, Steam Oxide - OSG 2855801
MFR# 2855801Series 280
$19.29List $24.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingSteam Oxide
Description
The OSG 2855801 is a 5/16-18 UNC HSS-E Vanadium Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Vanadium
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Neck length0.4600
Number of flutes3
Overall length2.72
OversizeNo
Shank diameter0.3170
StyleSpiral Point
Threads per inch18
Thread directionRight Hand
Thread length in1-1/8
Thread limitH11
Thread pitch0.0556
Thread size in5/16-18
Thread standardUNC
