OSG

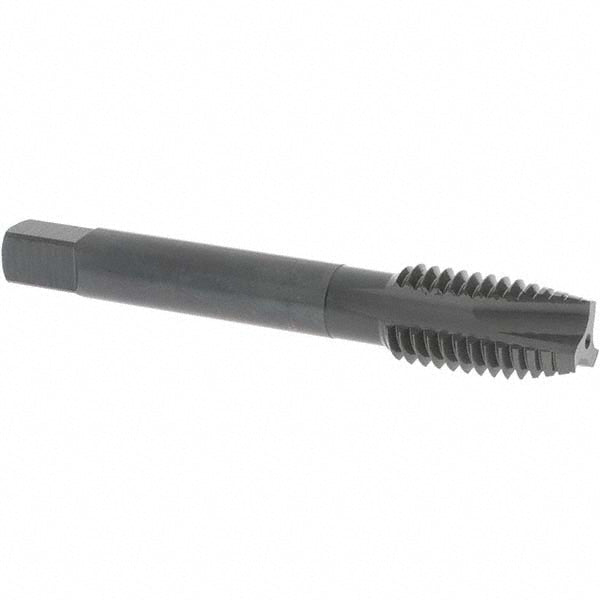

9/16-12 UNC High-Speed Steel-E Tap, Steam Oxide - OSG 2857601
MFR# 2857601Series 280
$45.13List $57.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size9/16-12
CoatingSteam Oxide
Description
The OSG 2857601 is a 9/16-12 UNC High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferPlug
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationAluminum; Hardened Steel; Stainless Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Alloy Steel; Die Steel; Cast Iron
Material grade3% Vanadium
Number of flutes3
Overall length3.594
OversizeNo
Shank diameter0.429
Thread directionRight Hand
Thread length in1-21/32
Thread limitH3
Thread size in9/16-12
Thread standardUNC
