OSG
#0-80 UNF High-Speed Steel Tap, TiCN - OSG 2864208
MFR# 2864208Series 285
$33.93List $43.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#0-80
CoatingTiCN
Description

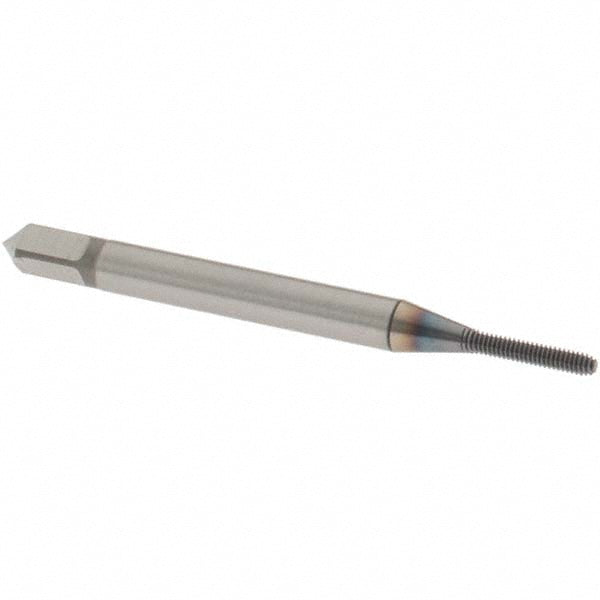

The OSG 2864208 is a #0-80 UNF High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in1-5/8
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.3500
Threads per inch80
Thread directionRight Hand
Thread length0.3173
Thread size in#0-80
Thread standardUNF
Trade nameHY-PRO NRT
