OSG

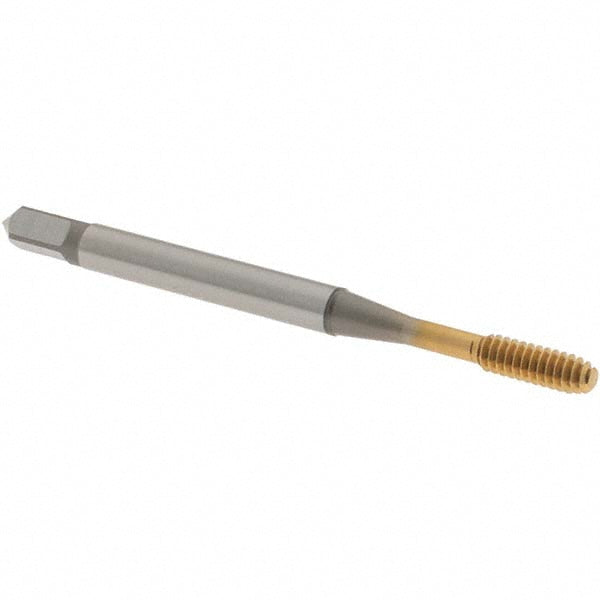

#4-40 UNC High-Speed Steel Tap, TiN - OSG 2864805
MFR# 2864805Series 285
$25.11List $32.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#4-40
CoatingTiN
Description
The OSG 2864805 is a #4-40 UNC High-Speed Steel tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in1-7/8
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.5590
Threads per inch40
Thread directionRight Hand
Thread length0.2950
Thread size in#4-40
Thread standardUNC
Trade nameHY-PRO NRT
