OSG

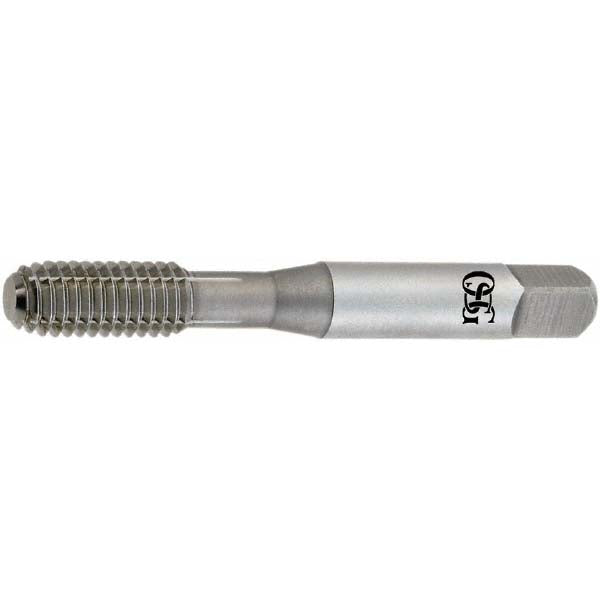

#8-32 UNC High-Speed Steel Tap, TiCN - OSG 2865208
MFR# 2865208Series 285
$26.84List $34.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#8-32
CoatingTiCN
Description
The OSG 2865208 is a #8-32 UNC High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in2-1/8
Shank diameter0.1680
Square length0.2500
Square size0.1310
Tapping depth0.7520
Threads per inch32
Thread directionRight Hand
Thread length0.3740
Thread size in#8-32
Thread standardUNC
Trade nameHY-PRO NRT
