OSG

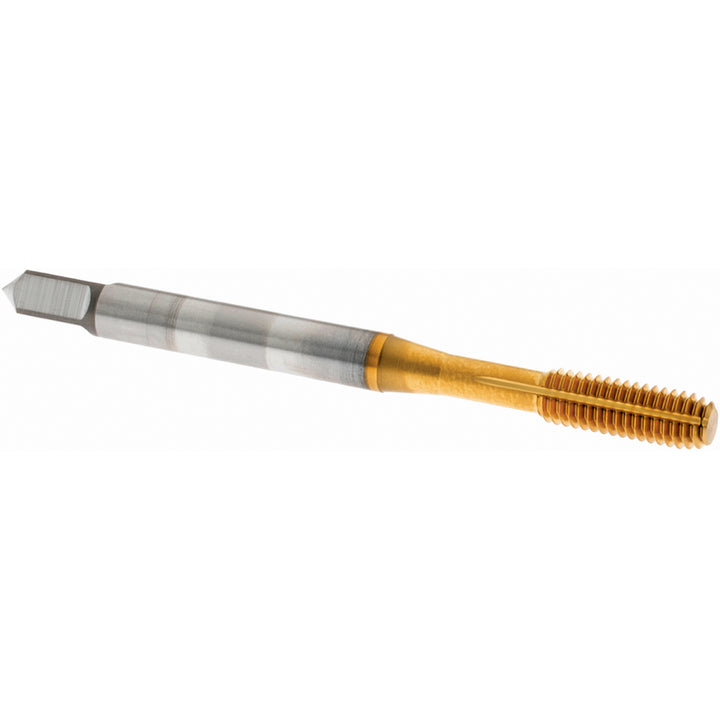

#10-32 UNF High-Speed Steel Tap, TiN - OSG 2865605
MFR# 2865605Series 285
$21.47List $27.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
CoatingTiN
Description
The OSG 2865605 is a #10-32 UNF High-Speed Steel tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in2-3/8
Shank diameter0.1940
Square length0.2500
Square size0.1520
Tapping depth0.8660
Threads per inch32
Thread directionRight Hand
Thread length0.4920
Thread size in#10-32
Thread standardUNF
Trade nameHY-PRO NRT
