OSG
1/4-20 UNC High-Speed Steel Tap - OSG 2865800
MFR# 2865800Series 285
$16.57List $21.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
Description

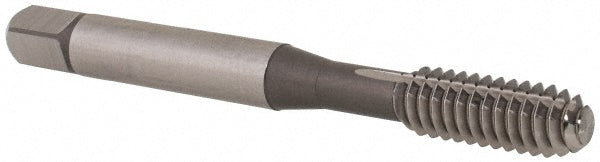

The OSG 2865800 is a 1/4-20 UNC High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in2-1/2
Shank diameter0.2550
Square length0.3125
Square size0.1910
Tapping depth0.9960
Threads per inch20
Thread directionRight Hand
Thread length0.5940
Thread size in1/4-20
Thread standardUNC
Trade nameHY-PRO NRT
