OSG
1/4-20 UNC High-Speed Steel Tap, TiCN - OSG 2865808
MFR# 2865808Series 285
$24.04List $30.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingTiCN
Description

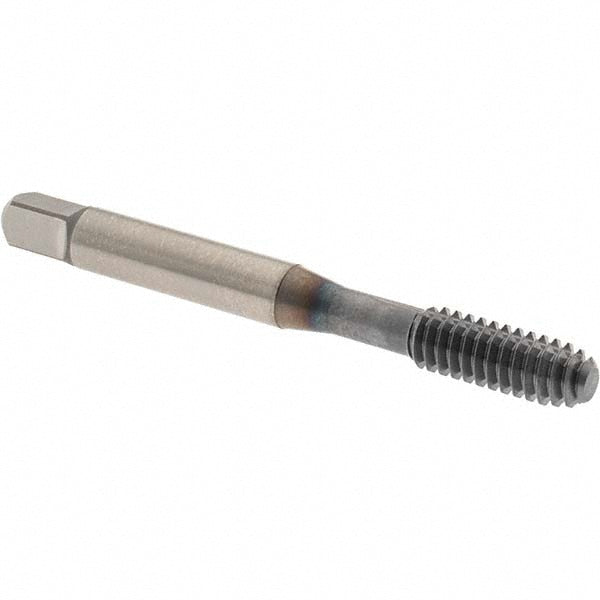

The OSG 2865808 is a 1/4-20 UNC High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in2-1/2
Shank diameter0.2550
Square length0.3125
Square size0.1910
Tapping depth0.9960
Threads per inch20
Thread directionRight Hand
Thread length0.5940
Thread size in1/4-20
Thread standardUNC
Trade nameHY-PRO NRT
