OSG

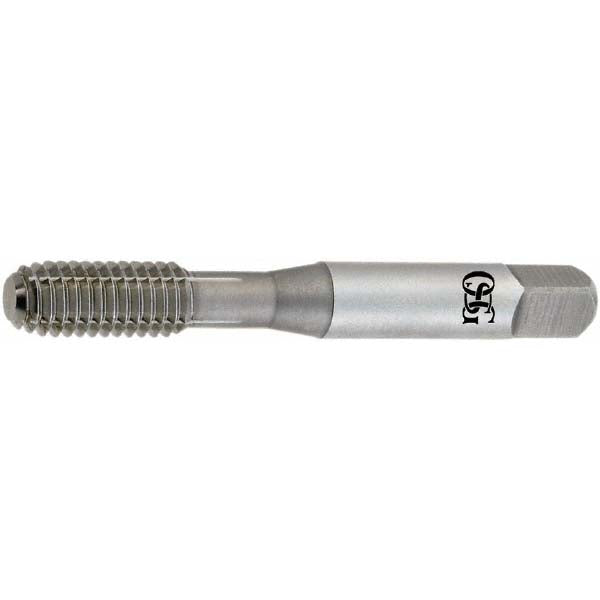

5/16-24 UNF High-Speed Steel Tap, TiCN - OSG 2866408
MFR# 2866408Series 285
$35.01List $44.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-24
CoatingTiCN
Description
The OSG 2866408 is a 5/16-24 UNF High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in2-23/32
Shank diameter0.3180
Square length0.3750
Square size0.2380
Tapping depth1.1260
Threads per inch24
Thread directionRight Hand
Thread length0.6650
Thread size in5/16-24
Thread standardUNF
Trade nameHY-PRO NRT
