OSG
3/8-24 UNF High-Speed Steel Tap, TiCN - OSG 2866808
MFR# 2866808Series 285
$41.97List $53.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size3/8-24
CoatingTiCN
Description

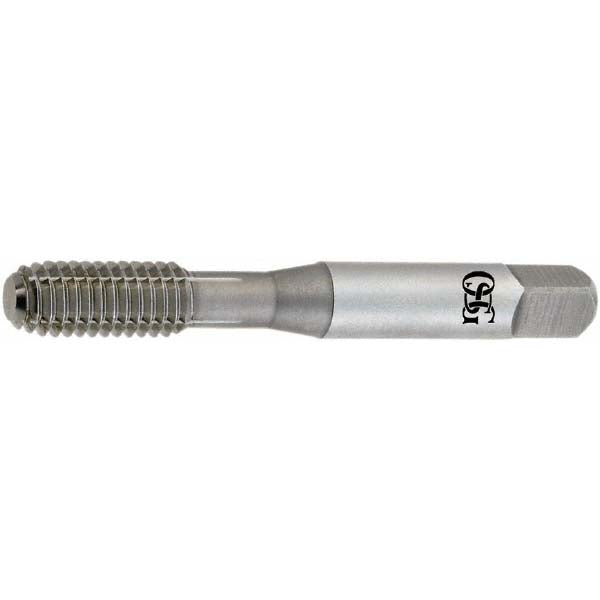

The OSG 2866808 is a 3/8-24 UNF High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in2-15/16
Shank diameter0.3810
Square length0.4375
Square size0.2860
Tapping depth1.2520
Threads per inch24
Thread directionRight Hand
Thread length0.7520
Thread size in3/8-24
Thread standardUNF
Trade nameHY-PRO NRT
