OSG

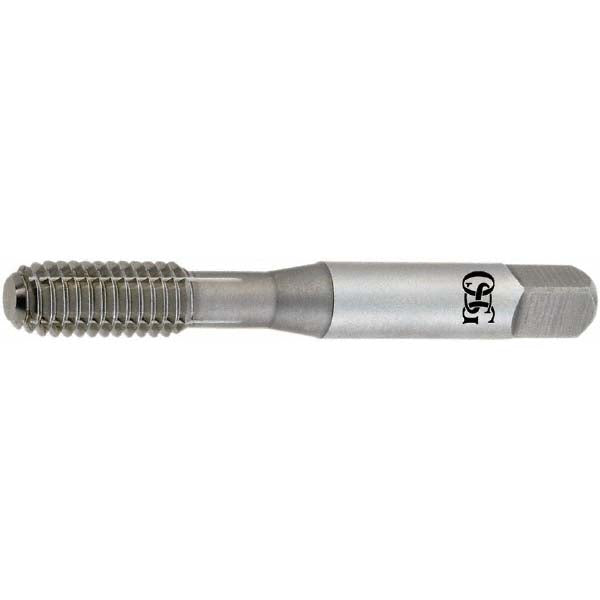

7/16-14 UNC High-Speed Steel Tap, TiCN - OSG 2867008
MFR# 2867008Series 285
$58.31List $74.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size7/16-14
CoatingTiCN
Description
The OSG 2867008 is a 7/16-14 UNC High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in3-5/32
Shank diameter0.3230
Square length0.4063
Square size0.2420
Tapping depth1.7130
Threads per inch14
Thread directionRight Hand
Thread length0.8580
Thread size in7/16-14
Thread standardUNC
Trade nameHY-PRO NRT
