OSG

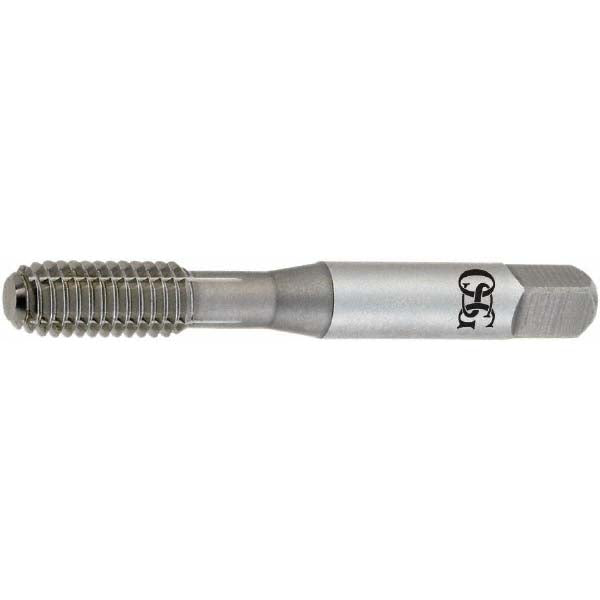

1/2-20 UNF High-Speed Steel Tap - OSG 2867600
MFR# 2867600Series 285
$40.80List $52.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-20
Description
The OSG 2867600 is a 1/2-20 UNF High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length in3-3/4
Shank diameter0.3670
Square length0.4375
Square size0.2750
Tapping depth1.9330
Threads per inch20
Thread directionRight Hand
Thread length0.9210
Thread size in1/2-20
Thread standardUNF
Trade nameHY-PRO NRT
