OSG

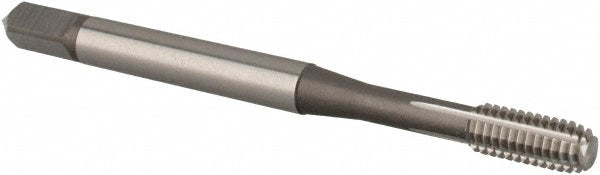

M4x0.7 Metric Coarse High-Speed Steel Tap - OSG 2868300
MFR# 2868300Series 286
$19.18List $24.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The OSG 2868300 is a Metric Coarse High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6H
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length2.1654
Shank diameter0.1680
Square length (mm)6.35
Square size0.1310
Tapping depth0.7520
Thread directionRight Hand
Thread length0.3307
Thread size (mm)M4x0.7
Thread standardMetric Coarse
Trade nameHY-PRO NRT
