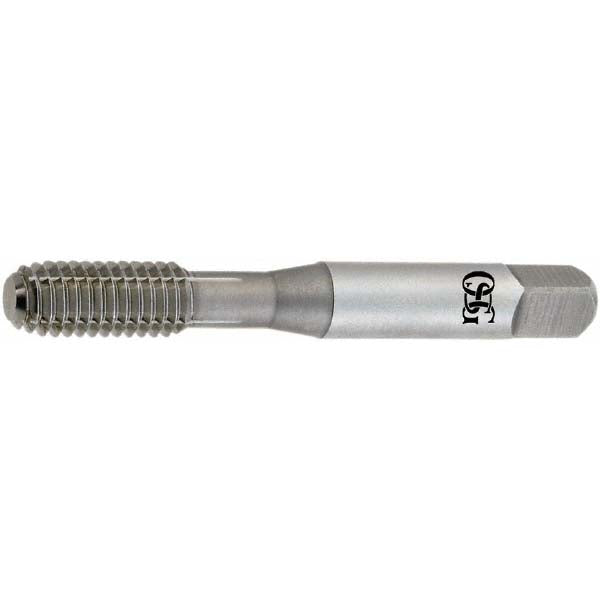

M4x0.7 Metric Coarse High-Speed Steel Tap, TiCN - OSG 2868308
MFR# 2868308Series 286
$29.81List $38.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The OSG 2868308 is a Metric Coarse High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length2.1654
Shank diameter0.1680
Square length (mm)6.35
Square size0.1310
Tapping depth0.7520
Thread directionRight Hand
Thread length0.3307
Thread size (mm)M4x0.7
Thread standardMetric Coarse
Trade nameHY-PRO NRT
