OSG

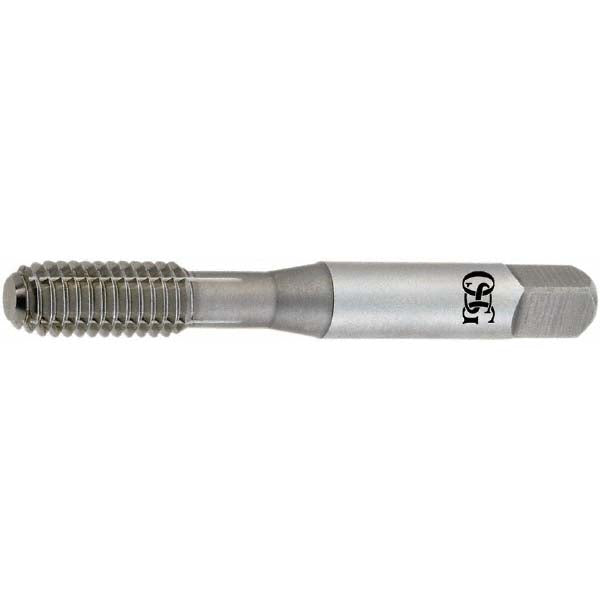

M10x1.5 Metric High-Speed Steel Tap, TiCN - OSG 2869108
MFR# 2869108Series 286
$52.80List $67.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The OSG 2869108 is a Metric High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length3.2283
Shank diameter0.3180
Square length (mm)11.11
Square size0.2860
Tapping depth1.2520
Thread directionRight Hand
Thread length0.7087
Thread size (mm)M10x1.5
Thread standardMetric
Trade nameHY-PRO NRT
