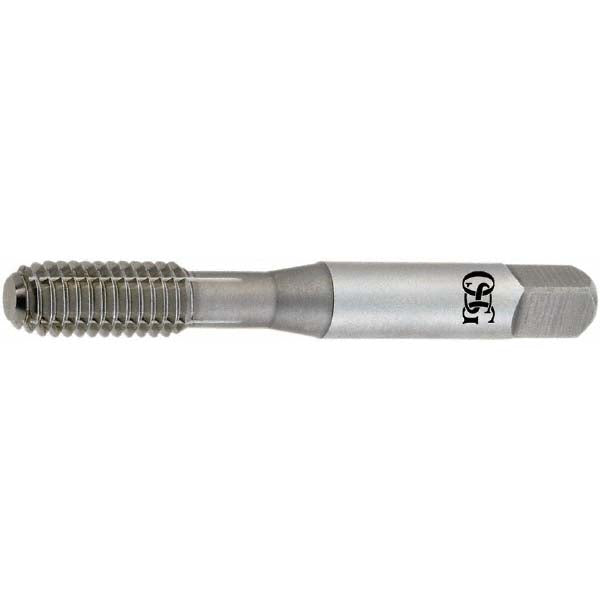

M12x1.75 Metric Coarse High-Speed Steel Tap, TiCN - OSG 2869308
MFR# 2869308Series 286
$66.72List $85.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The OSG 2869308 is a Metric Coarse High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Low-Carbon Steel; Medium-Carbon Steel
Material application codeP; N
Overall length3.3465
Shank diameter0.3670
Square length (mm)11.11
Square size0.2756
Tapping depth1.9331
Thread directionRight Hand
Thread length0.8268
Thread size (mm)M12x1.75
Thread standardMetric Coarse
Trade nameHY-PRO NRT
