OSG

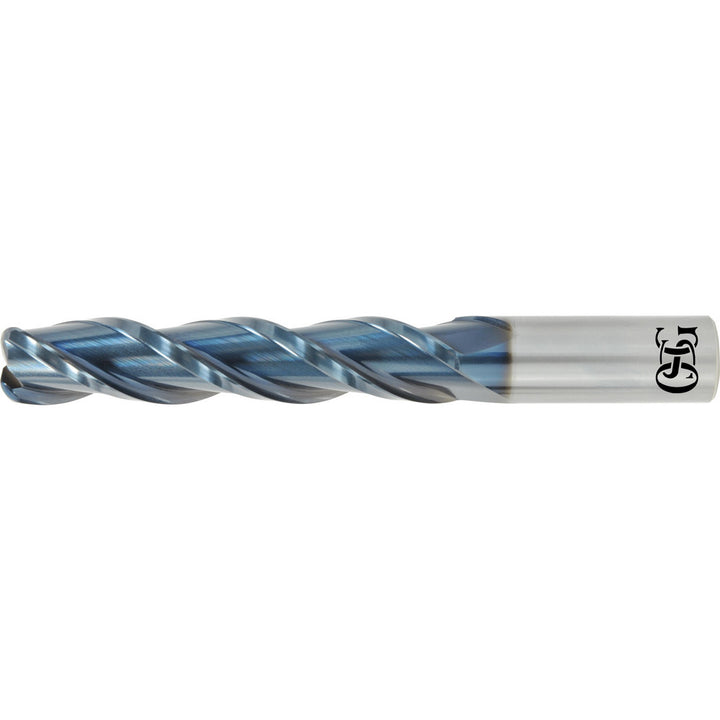

3/4" 3-Flute Solid Carbide Corner Radius End Mill, DLC - OSG 28732100

MFR# 28732100Series 2873

$433.28List $555.70 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingDLC

Description

The OSG 28732100 is a 3/4 3-flute Solid Carbide corner radius end mill with a DLC finish for longer tool life. Suited for non-ferrous metal. 1-1/8 length of cut, 4 overall length. Series 2873.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDLC

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-1/8

Length typeStub

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in3/4

Mill diameter tolerance0.0000/-0.0008 in

Neck diameter0.6690

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length2.2050

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
