OSG

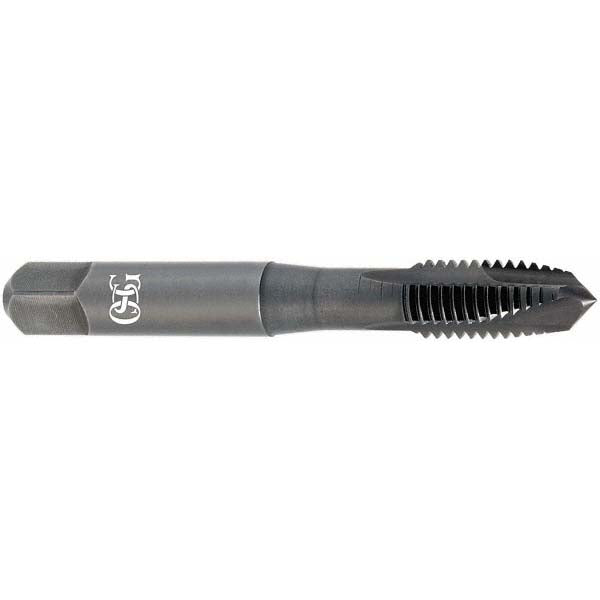

M14x1.5 Metric Fine HSS-E Vanadium Spiral Point Tap, TiCN - OSG 2892508
MFR# 2892508Series 289
$79.69List $102.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 2892508 is a Metric Fine HSS-E Vanadium Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Vanadium
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Measurement typeMetric
Neck length (mm)12.00
Number of flutes3
Overall length (mm)91
OversizeNo
Shank diameter0.4290
Square size (mm)8.18
StyleSpiral Point
Threads per inch16.93
Thread directionRight Hand
Thread length in1-21/32
Thread limitD6
Thread pitch (mm)1.5
Thread size (mm)M14x1.5
Thread standardMetric Fine
