OSG

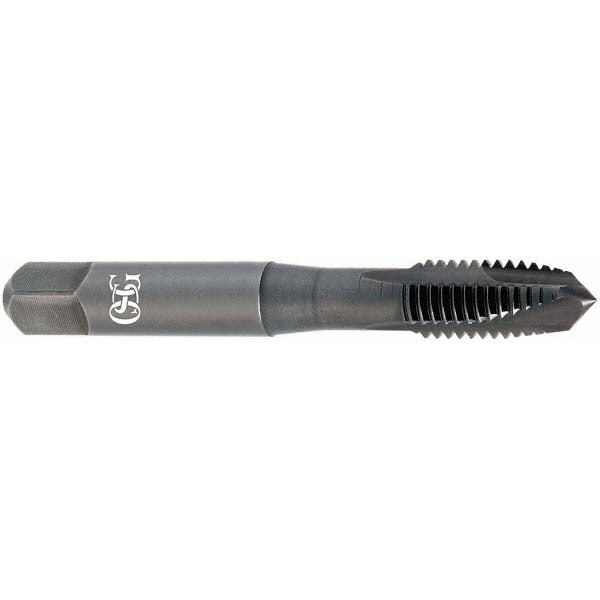

M8x1 Metric Fine HSS-E Vanadium Spiral Point Tap, Steam Oxide - OSG 2894301
MFR# 2894301Series 289
$24.16List $30.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2894301 is a Metric Fine HSS-E Vanadium Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Vanadium
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Neck length (mm)14.00
Number of flutes3
Overall length (mm)69
OversizeNo
Shank diameter0.3180
Square size (mm)6.05
StyleSpiral Point
Threads per inch25.4
Thread directionRight Hand
Thread length in1-1/8
Thread limitD11
Thread pitch (mm)1
Thread size (mm)M8x1
Thread standardMetric Fine
