OSG
#3-48 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2906001
MFR# 2906001Series 290
$35.24List $45.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#3-48
CoatingSteam Oxide
Description

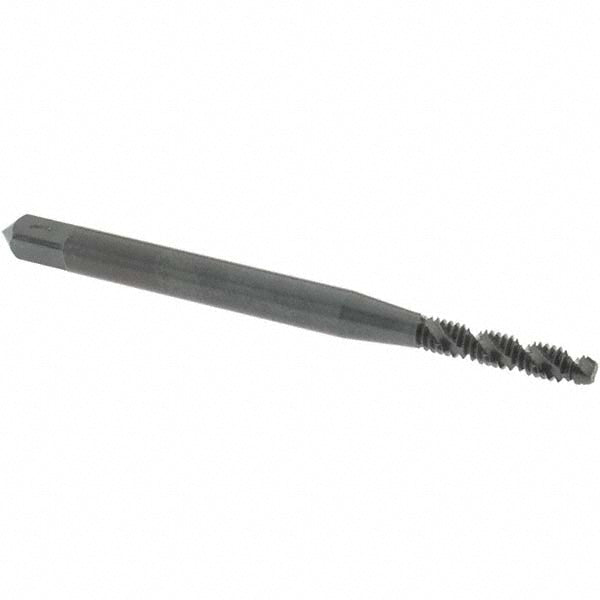

The OSG 2906001 is a #3-48 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.535
Number of flutes2
Overall length in1-13/16
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch48
Thread directionRight Hand
Thread length0.496
Thread limitH2
Thread size in#3-48
Thread standardUNC
