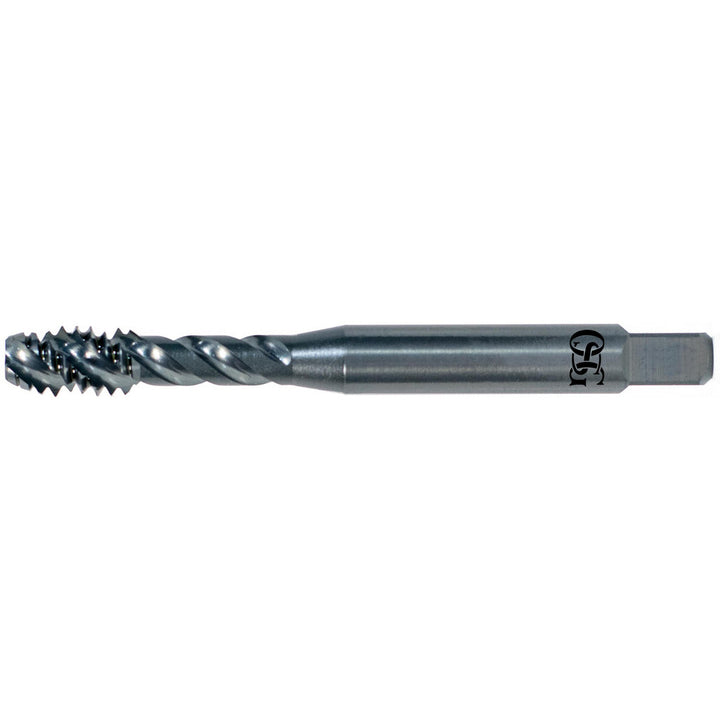

#4-40 UNC Vanadium High-Speed Steel Tap - OSG 2906400
MFR# 2906400Series 290
$28.93List $37.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
Description
The OSG 2906400 is a #4-40 UNC Vanadium High-Speed Steel tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B; 3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.559
Number of flutes3
Overall length in1-7/8
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch40
Thread directionRight Hand
Thread length0.196
Thread limitH2
Thread size in#4-40
Thread standardUNC
