#5-40 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2907001
MFR# 2907001Series 290
$28.93List $37.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-40
CoatingSteam Oxide
Description

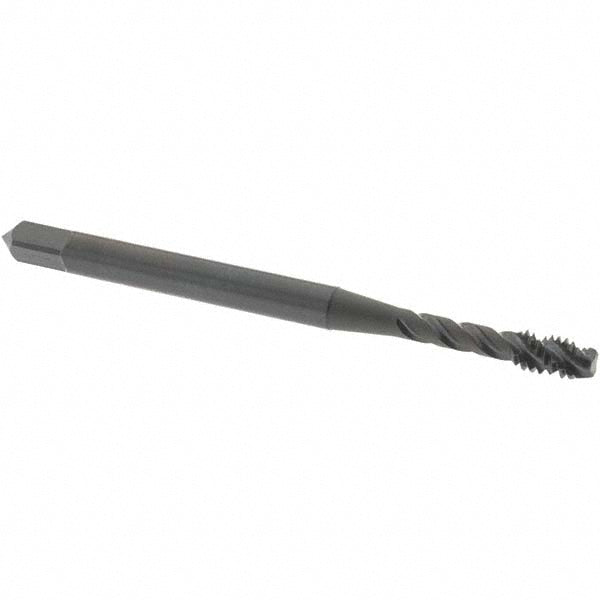

The OSG 2907001 is a #5-40 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B; 3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.625
Number of flutes3
Overall length in1-15/16
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch40
Thread directionRight Hand
Thread length0.2
Thread limitH2
Thread size in#5-40
Thread standardUNC
