OSG

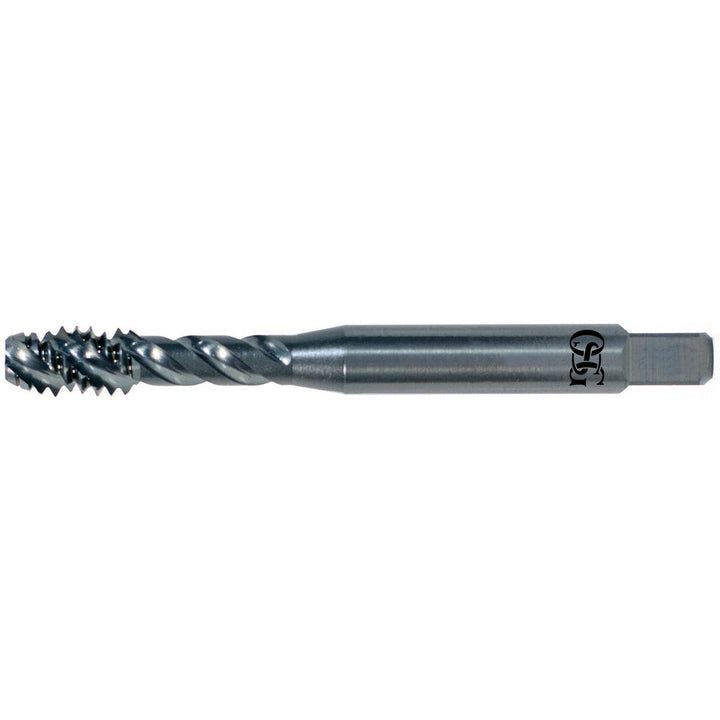

#5-40 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 2907008
MFR# 2907008Series 290
$33.13List $42.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-40
CoatingTiCN
Description
The OSG 2907008 is a #5-40 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B; 3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.933
Number of flutes3
Overall length in1-15/16
OversizeNo
Shank diameter0.367
Square length0.1875
Square size0.11
Threads per inch40
Thread directionRight Hand
Thread length0.2
Thread limitH2
Thread size in#5-40
Thread standardUNC
