OSG

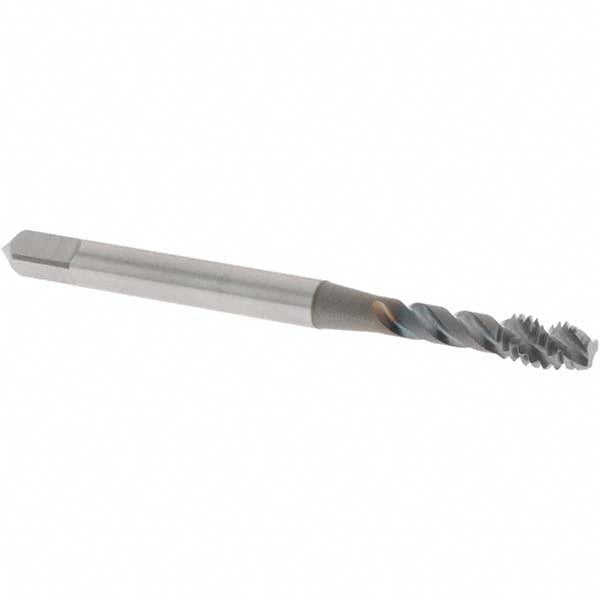

#8-32 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 2907808
MFR# 2907808Series 290
$28.83List $36.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingTiCN
Description
The OSG 2907808 is a #8-32 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Number of flutes3
Overall length in2-1/8
OversizeNo
Shank diameter0.255
Square length0.25
Square size0.131
Threads per inch32
Thread directionRight Hand
Thread length0.251
Thread limitH2
Thread size in#8-32
Thread standardUNC
