OSG

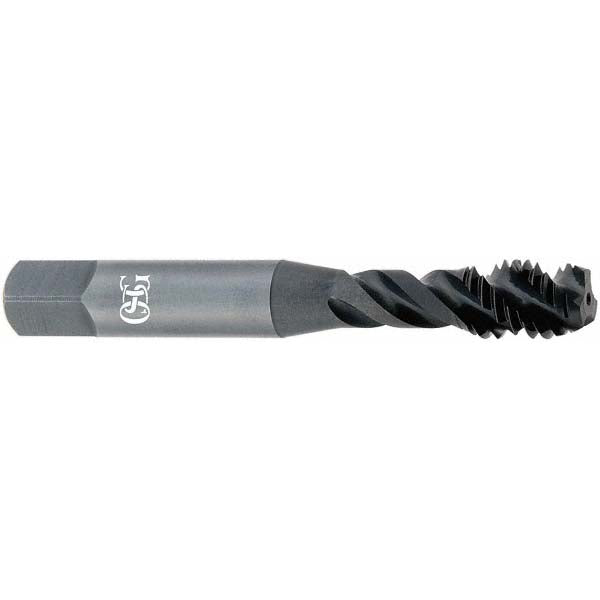

#10-32 UNF Vanadium High-Speed Steel Tap - OSG 2908800
MFR# 2908800Series 290
$23.48List $30.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
Description
The OSG 2908800 is a #10-32 UNF Vanadium High-Speed Steel tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Number of flutes3
Overall length in2-3/8
Shank diameter0.1940
Square length0.2500
Square size0.1520
Threads per inch32
Thread directionRight Hand
Thread length0.3260
Thread limitH2
Thread size in#10-32
Thread standardUNF
