OSG

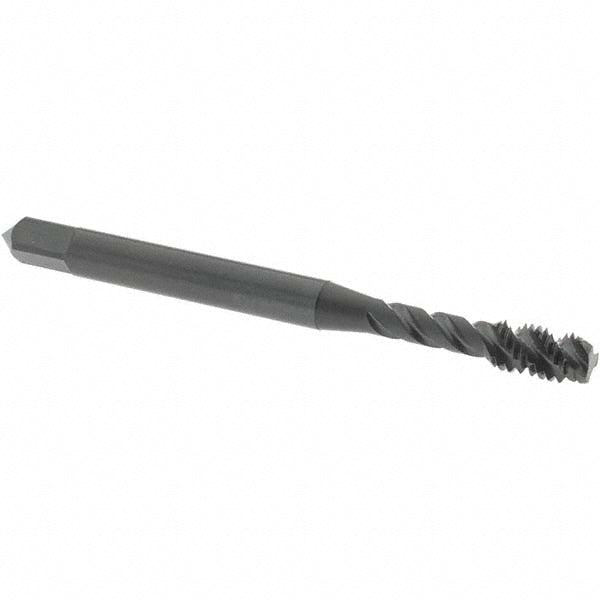

#10-32 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2913801
MFR# 2913801Series 290
$23.48List $30.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingSteam Oxide
Description
The OSG 2913801 is a #10-32 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.866
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.194
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.326
Thread limitH3
Thread size in#10-32
Thread standardUNF
