OSG

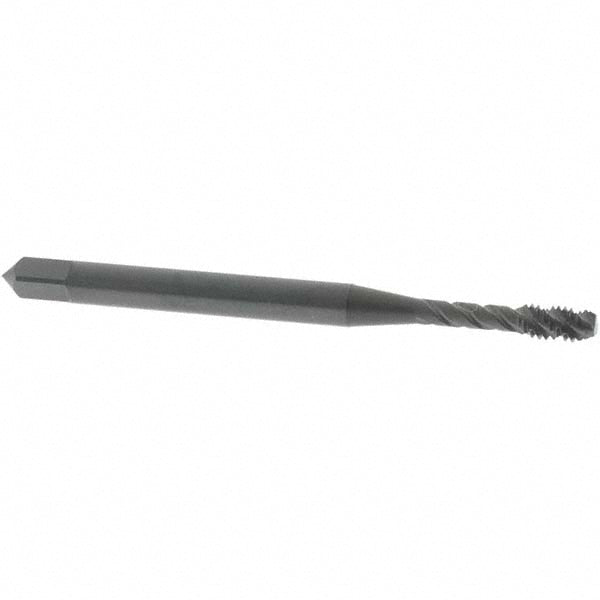

#4-48 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2916801
MFR# 2916801Series 290
$27.81List $35.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-48
CoatingSteam Oxide
Description
The OSG 2916801 is a #4-48 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Material grade3% Vanadium HSS
Neck length1.252
Number of flutes3
Overall length in1-7/8
OversizeNo
Shank diameter0.381
Square length0.1875
Square size0.11
Threads per inch48
Thread directionRight Hand
Thread length0.196
Thread limitH2
Thread size in#4-48
Thread standardUNF
