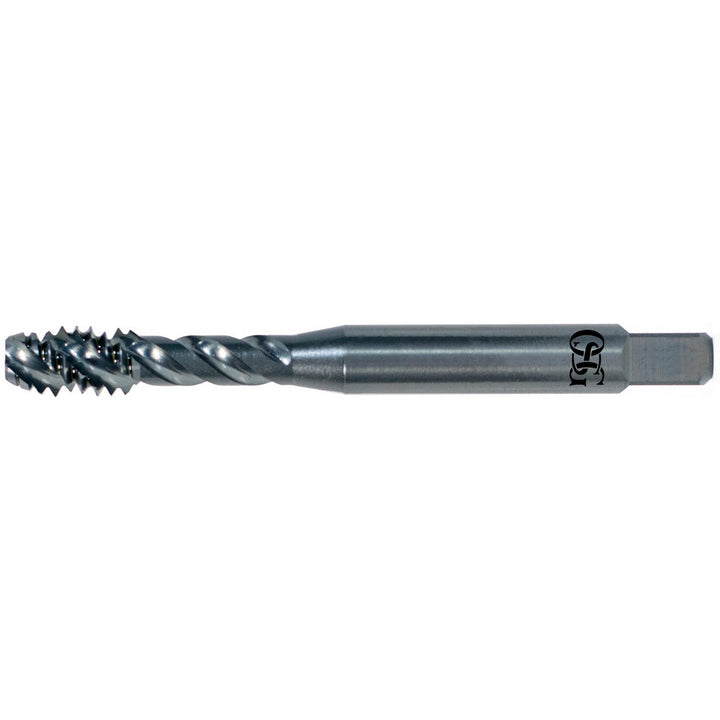

#4-48 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 2916808
MFR# 2916808Series 290
$31.83List $40.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-48
CoatingTiCN
Description
The OSG 2916808 is a #4-48 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length3.0000000000000004
Number of flutes3
Overall length in1-7/8
OversizeNo
Shank diameter1.233
Square length0.1875
Square size0.11
Threads per inch48
Thread directionRight Hand
Thread length0.196
Thread limitH2
Thread size in#4-48
Thread standardUNF
