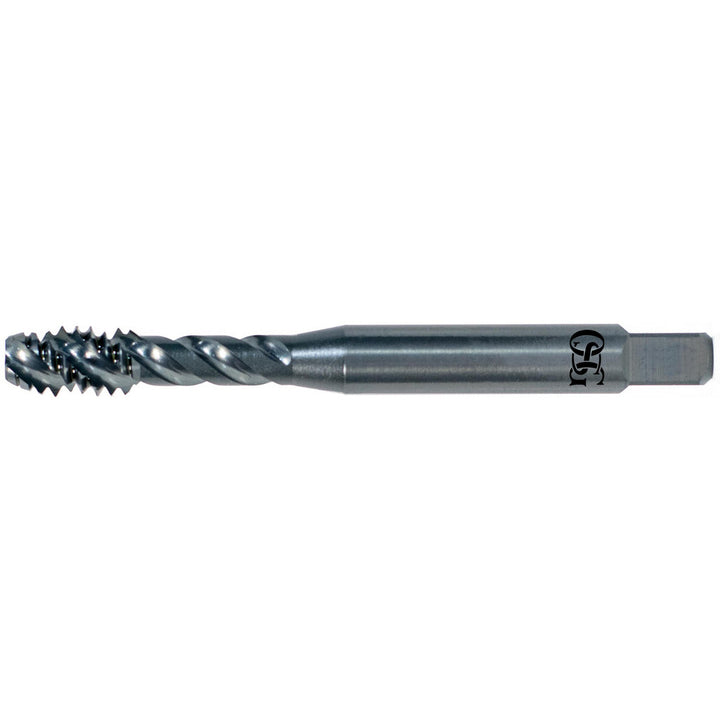

#6-32 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 2917508
MFR# 2917508Series 290
$26.87List $34.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingTiCN
Description
The OSG 2917508 is a #6-32 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.559
Number of flutes3
Overall length in2
OversizeYes
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch32
Thread directionRight Hand
Thread length0.248
Thread limitH7
Thread size in#6-32
Thread standardUNC
