OSG

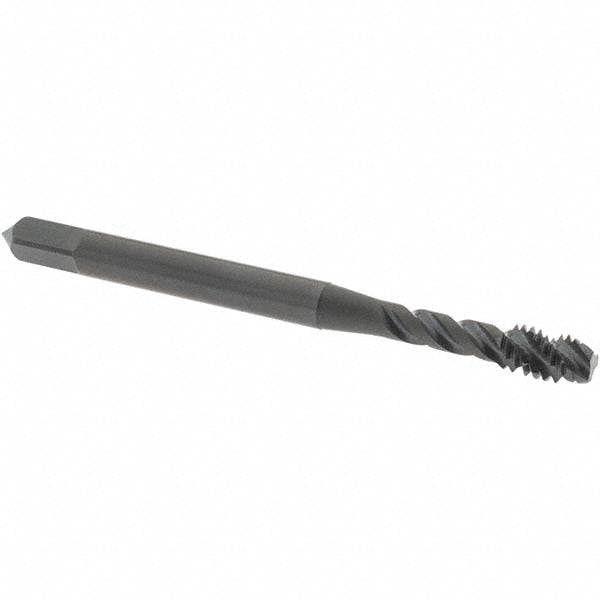

#8-32 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2918101
MFR# 2918101Series 290
$23.48List $30.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingSteam Oxide
Description
The OSG 2918101 is a #8-32 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.751
Number of flutes3
Overall length in2-1/8
OversizeYes
Shank diameter0.168
Square length0.25
Square size0.131
Threads per inch32
Thread directionRight Hand
Thread length0.251
Thread limitH11
Thread size in#8-32
Thread standardUNC
