OSG

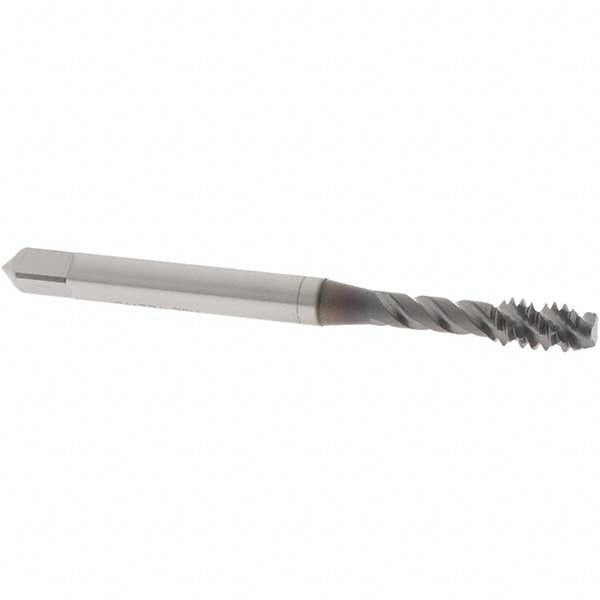

#10-24 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 2918408
MFR# 2918408Series 290
$30.08List $37.92
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingTiCN
Description
The OSG 2918408 is a #10-24 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.125
Number of flutes3
Overall length in2-3/8
OversizeYes
Shank diameter0.318
Square length0.25
Square size0.152
Threads per inch24
Thread directionRight Hand
Thread length0.326
Thread limitH5
Thread size in#10-24
Thread standardUNC
